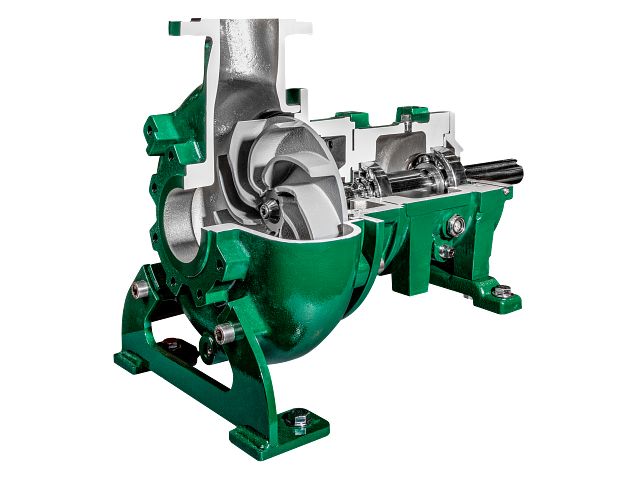

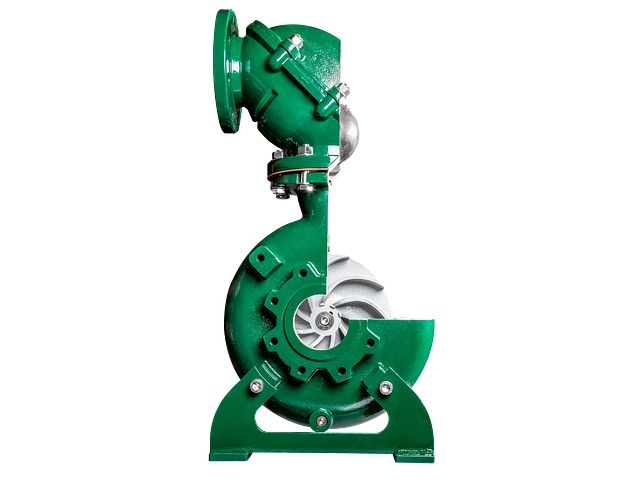

Vortex Series Recessed Impeller Pumps
Meet your chopper pump and non-clog alternative: Pioneer Pump® Vortex Series™ Pumps eliminate costly and disruptive downtime by passing through the most challenging solids using a recessed stainless impeller, making them ideal for applications where fluid conditioning, macerating, or mix-prevention are unnecessary. Vortex technology saves time and money by eliminating internal wetted parts, like wear plates and chopper blades, that would otherwise have to be monitored, adjusted or replaced.
Brand
Overview
Features & Benefits

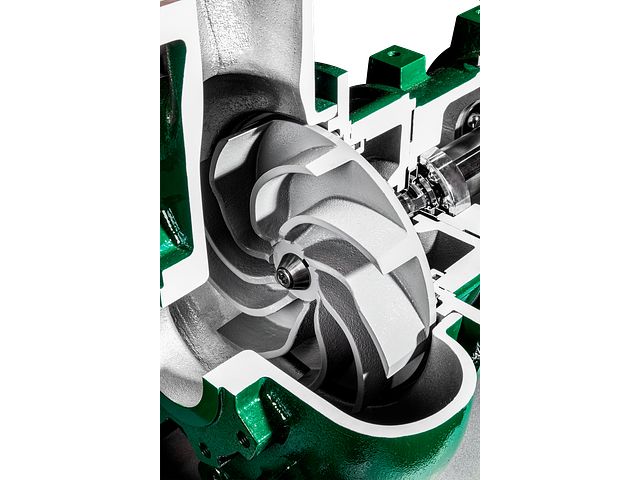

- Vortex Impeller
- Recessed impeller passes challenging solids by avoiding direct contact
- No wear plates, wear rings or cutting blades

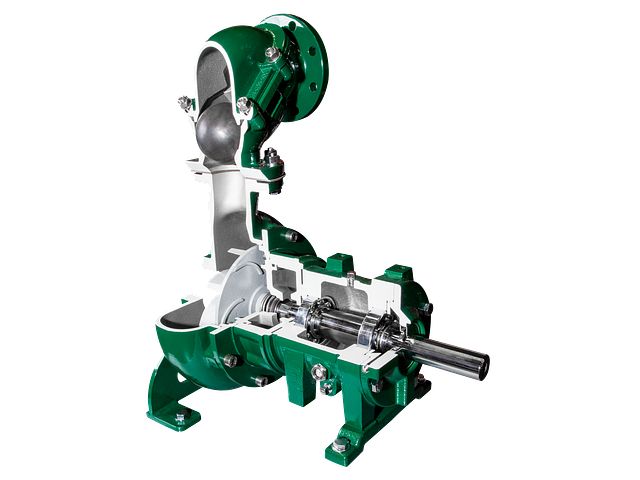

- Discharge Check Valve
- Elbow-style ball check valve allows any solids that pass through the pump to pass through the pipe
- Bearing Frame
- Oversized shaft provides longer service life
- SAE and bare-shaft drive-end configurations available
- Pioneer Prime Priming System (Optional)
- Heavy duty, vacuum-assisted capable of 50 CFM
- Unattended re-prime and operation in suction lift applications
Specifications
Performance
Order Information
44V10
| Item | Suction | Discharge | Impeller Dia. | Priming Type | SAE Size | Volute Material |
|---|---|---|---|---|---|---|
| PPHF44V10-001 | 4" | 4" | 10.63" / 270 mm | Pioneer Prime | None | Ductile Iron |
| SCHF44V10-000 | 4" | 4" | 10.63" / 270 mm | None | None | Ductile Iron |
66V10
| Item | Suction | Discharge | Impeller Dia. | Priming Type | SAE Size | Volute Material |
|---|---|---|---|---|---|---|
| PPHF66V10-001 | 6" | 6" | 9.65" / 245 mm | Pioneer Prime | None | Ductile Iron |
| SCHF66V10-000 | 6" | 6" | 9.65" / 245 mm | None | None | Ductile Iron |
66V12
| Item | Suction | Discharge | Impeller Dia. | Priming Type | SAE Size | Volute Material |
|---|---|---|---|---|---|---|
| PPHF66V12-001 | 6" | 6" | 10.24" / 260 mm | Pioneer Prime | None | Ductile Iron |
| SCHF66V12-001 | 6" | 6" | 10.24" / 260 mm | None | None | Ductile Iron |
88V12
| Item | Suction | Discharge | Impeller Dia. | Priming Type | SAE Size | Volute Material |
|---|---|---|---|---|---|---|
| SCHF88V12-000 | 8" | 8" | 11.81" / 300 mm | None | None | Ductile Iron |
Support Materials
Featured Downloads
Brochures
Manuals
Curves
Parts & Accessories
Vortex Series Parts & Accessories
66V10 Rotating Assembly is a pre-assembled shaft including full bearing housing, pre-installed bearings, cassette seals, mechanical seal, impeller, backplate and bracket.
Bearing frame kit for 44V10, 66V10. Contains all necessary bearings, snap ring, cassette seal, shims, and o-rings to perform a bearing replacement
Bearing frame kit for 66V12. Contains all necessary bearings, snap ring, cassette seal, shims, and o-rings to perform a bearing replacement
Mechanical seal kit for 44V10, 66V10. Includes the mechanical seal, cassette seal, impeller key and shims, and a lock washer kit.
Mechanical seal kit for 66V12, 88V12. Includes the mechanical seal, cassette seal, impeller key and shims, and a lock washer kit.
