Submersible Pumps & Vertical Turbines

Minetuff Series Submersible Dewatering Pumps

Submersible Pumps & Vertical Turbines

Minetuff Series Submersible Dewatering Pumps

Our Minetuff® Series electric submersible pumps deliver proven reliability in the world’s harshest environments – from mines to construction sites. Whether you need a submersible that moves with your crew or one that stays in place, every pump is engineered for optimal performance and rugged durability to keep your site operational. As part of the Pioneer Pump portfolio, you can trust these pumps are fully supported with local resources and digital tools dedicated to your business.

Brand

Franklin Electric
Overview
Specifications
Order Information
Support Materials

Overview

Features & Benefits

  • Heavy Duty Motors
    • Class H insulation system with integrated thermistors for protection against thermal overload to increase active pumping time
  • Mechanical Seals
    • Specifically designed for Minetuff Series
    • 316 SS encased, built with tungsten carbide and/or sillicon carbide faces
  • Distinctive Impeller Composition
    • Special duplex stainless steel with more chrome, copper, and nitrogen for toughness and corrosion resistance in mine applications
  • Polyurethane-Coated Wear Parts
    • Unique co-polymer with better tensile and fatigue strength than standard polyurethane
    • Resilience is higher than nitrile butadiene rubber to extend life and reduce cost
  • Aluminum Casting
    • Pumps from 8 hp to 58 hp are cast in lightweight aluminum alloy for maneuverability
    • Thick casting walls ensure extra durability
  • Fully wet-tested in-house for quality control, which means peace of mind for your job site
  • Rugged construction, with robust materials and adjustable hydraulics, withstands the most demanding dewatering challenges.
  • Designed for optimal performance in the harshest applications a pump can encounter, including handling smaller abrasives like sand, small stones, and clay.



Specifications

Minetuff High Head Performance

Minetuff High Volume Performance

Order Information

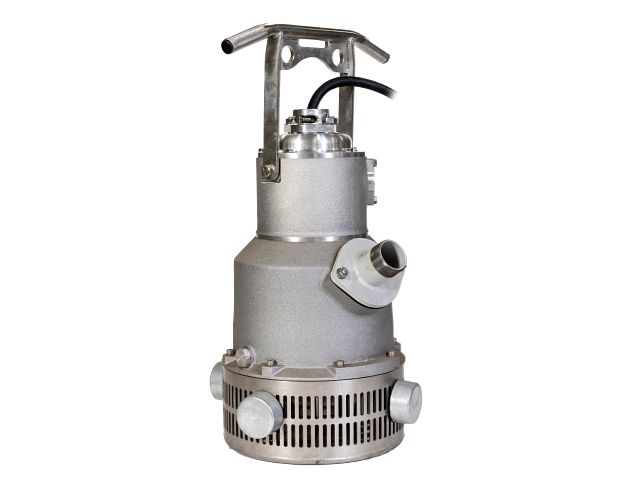

MTP 8HP

Item Discharge Voltage Amps - Full Load Cable Length
D00801 2" 460 VAC 10 A 50 ft / 15.24 m
D00802 3" 460 VAC 10 A 50 ft / 15.24 m
D00803 2" 575 VAC 8.5 A 0 ft / 0 m
D00804 3" 575 VAC 7.5 A 0 ft / 0 m

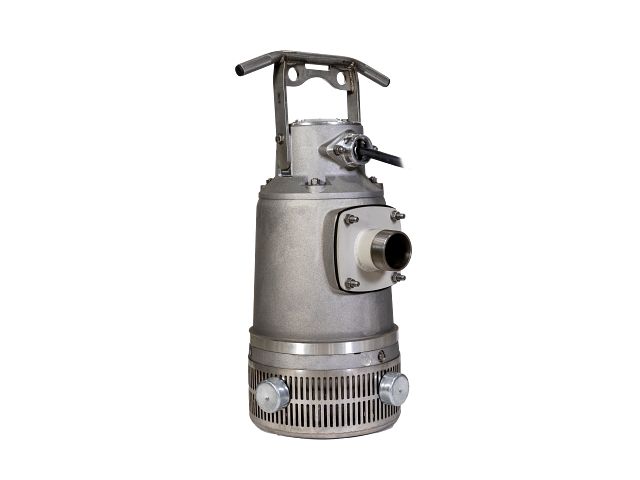

MTP 13HP

Item Discharge Voltage Amps - Full Load Cable Length
D01301 3" 460 VAC 14 A 50 ft / 15.24 m
D01302 4" 460 VAC 16 A 50 ft / 15.24 m
D01303 3" 575 VAC 11 A 0 ft / 0 m
D01304 4" 575 VAC 13 A 0 ft / 0 m

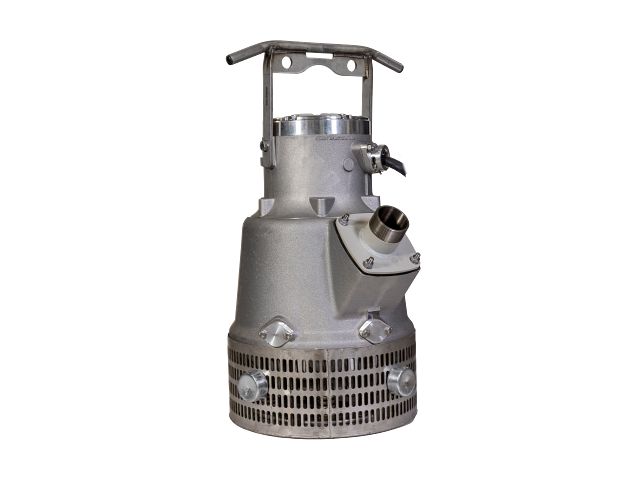

MTP 30HP

Item Discharge Voltage Amps - Full Load Cable Length
D03001 4" 460 VAC 38 A 50 ft / 15.24 m
D03002 6" 460 VAC 33 A 50 ft / 15.24 m
D03003 4" 575 VAC 33 A 0 ft / 0 m
D03004 6" 575 VAC 28 A 0 ft / 0 m

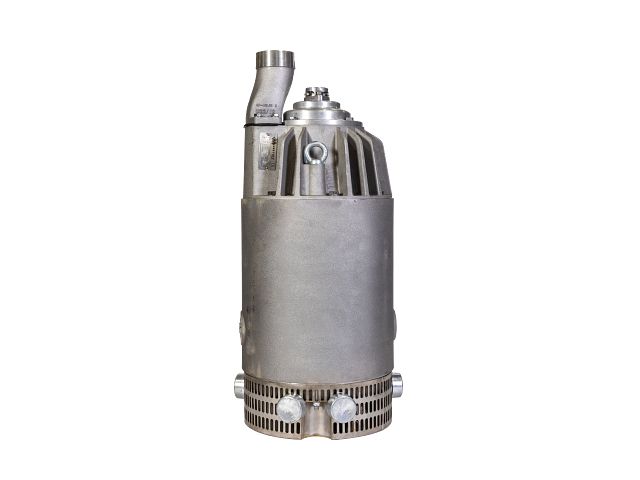

MTP 58HP

Item Discharge Voltage Amps - Full Load Cable Length
D06001 4" 460 VAC 65 A 50 ft / 15.24 m
D06003 4" 575 VAC 50 A 0 ft / 0 m

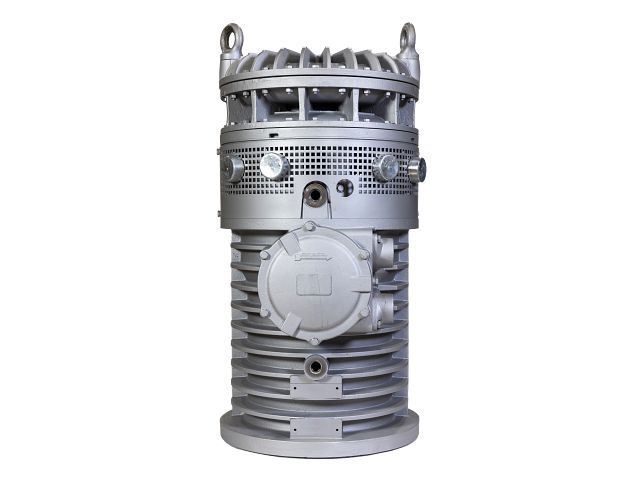

MTP 140HP

Item Discharge Voltage Amps - Full Load Cable Length
D14001 4" 460 VAC 146 A 50 ft / 15.24 m
D14002 6" 460 VAC 153 A 50 ft / 15.24 m
D14003 4" 575 VAC 116 A 0 ft / 0 m
D14004 6" 575 VAC 118 A 0 ft / 0 m
