GT Series Wet Prime Centrifugal Pumps

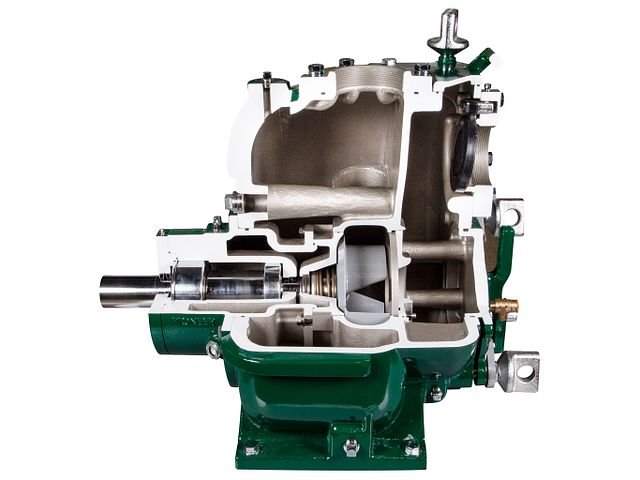

Ideal for the toughest tasks -- all within a standard footprint -- the Pioneer Pump® GT Series is a heavy-duty self-priming sewage pump solution for nearly any food processing, wastewater treatment, waste handling, chemical processing, or industrial application with high performance demands. The GT Series features a larger shaft design, heavy-duty bearing frame and ductile iron construction which increases durability and allows operating at higher speeds than the industry standard for self-priming pumps. Our unique suction design improves NPSHr and alleviates abrasion wear on the pump. The distinct cover combines both the fill access port and flapper check valve into one to improve ease of use.
Brand
Overview
Features & Benefits
- Rotation assembly utilizes a double-lip seal with atmospheric drain for additional bearing protection
- Simple, external shimless impeller adjustment from either the rotating assembly or cover plate allows for increased wear life and ease of adjusting tolerance
- Oversized shaft bearings for high speed operation over standard self-priming options
- Removable cover plate with convenient grip handle for ease of maintenance; incorporates jack bolts for aiding in removal
- Cartridge-type, oil-lubricated tungsten versus silicon carbide mechanical seal for simple installation and ease of maintenance
- 17-4 PH stainless steel shaft is corrosion-resistant, easy to maintain, and highly reliable
- Standard, heavy-wall volute for durability and peace of mind
- Semi-open, trash-handling, dynamically-balanced ductile iron impeller
- FKM O-rings allow for use in a wide range of applications
Specifications
GT Series Performance Curve
Order Information
GT3
| Item | Suction | Discharge | Impeller Dia. | Priming Type | SAE Size | Volute Material |
|---|---|---|---|---|---|---|
| SPHFGT3-000 | 3" | 3" | 8.75" / 222 mm | Wet Prime | None | Ductile Iron |
| SPHFGT3-001 | 3" | 3" | 8.75" / 222 mm | Wet Prime | None | Ductile Iron |
GT4
| Item | Suction | Discharge | Impeller Dia. | Priming Type | SAE Size | Volute Material |
|---|---|---|---|---|---|---|
| SPEMGT4-000 | 4" | 4" | 9.75" / 248 mm | Wet Prime | SAE 4 | Ductile Iron |
| SPEMGT4-001 | 4" | 4" | 9.75" / 248 mm | Wet Prime | SAE 3 | Ductile Iron |
| SPEMGT4-002 | 4" | 4" | 9.75" / 248 mm | Wet Prime | SAE 4 | Ductile Iron |
| SPEMGT4-003 | 4" | 4" | 9.75" / 248 mm | Wet Prime | SAE 3 | Ductile Iron |
| SPEMGT4-004 | 4" | 4" | 9.75" / 248 mm | Wet Prime | SAE 4 | Ductile Iron |
| SPHFGT4-000 | 4" | 4" | 9.75" / 248 mm | Wet Prime | None | Ductile Iron |
| SPHFGT4-001 | 4" | 4" | 9.75" / 248 mm | Wet Prime | None | Ductile Iron |
GT6
| Item | Suction | Discharge | Impeller Dia. | Priming Type | SAE Size | Volute Material |
|---|---|---|---|---|---|---|
| SPEMGT6O13-000T12-50 | 6" | 6" | 12.5" / 318 mm | Wet Prime | SAE 3 | Ductile Iron |
| SPEMGT6O13-001T12-50 | 6" | 6" | 12.5" / 318 mm | Wet Prime | SAE 3 | Ductile Iron |
| SPHFGT6O13-000 | 6" | 6" | 13" / 330 mm | Wet Prime | None | Ductile Iron |
| SPHFGT6O13-001 | 6" | 6" | 13" / 330 mm | Wet Prime | None | Ductile Iron |
Support Materials
Featured Downloads
Brochures
Curves
Parts & Accessories
GT Series Pump Repair Kits
GT6 Rotating Assembly is a pre-assembled shaft including full bearing housing, pre-installed bearings, lip seals, mechanical seal and impeller.
GT3 Rotating Assembly is a pre-assembled shaft including full bearing housing, pre-installed bearings, lip seals, mechanical seal and impeller.
GT4 Rotating Assembly is a pre-assembled shaft including full bearing housing, pre-installed bearings, lip seals, mechanical seal and impeller.
Mechanical seal kit for GT3. Includes the mechanical seal, cassette seal, impeller key and shims, and a lock washer kit.
Mechanical seal kit for GT6. Includes the mechanical seal, cassette seal, impeller key and shims, and a lock washer kit.
Mechanical seal kit for GT4. Includes the mechanical seal, cassette seal, impeller key and shims, and a lock washer kit.
Bearing frame kit for GT6. Contains all necessary bearings, snap ring, cassette seal, shims, and o-rings to perform a bearing replacement
Bearing frame kit for GT4. Contains all necessary bearings, snap ring, cassette seal, shims, and o-rings to perform a bearing replacement
Bearing frame kit for GT3. Contains all necessary bearings, snap ring, cassette seal, shims, and o-rings to perform a bearing replacement
