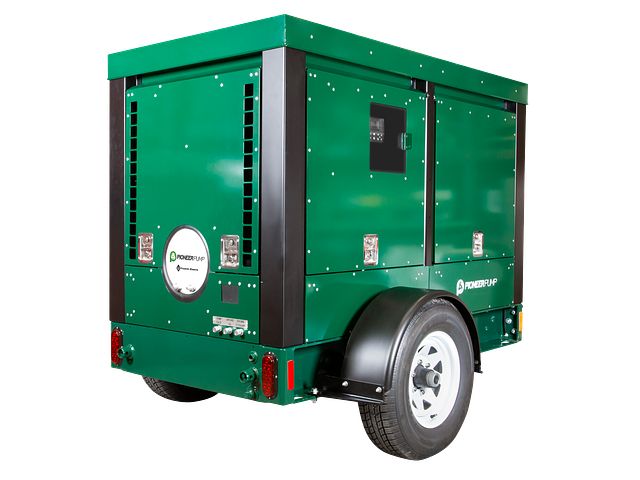

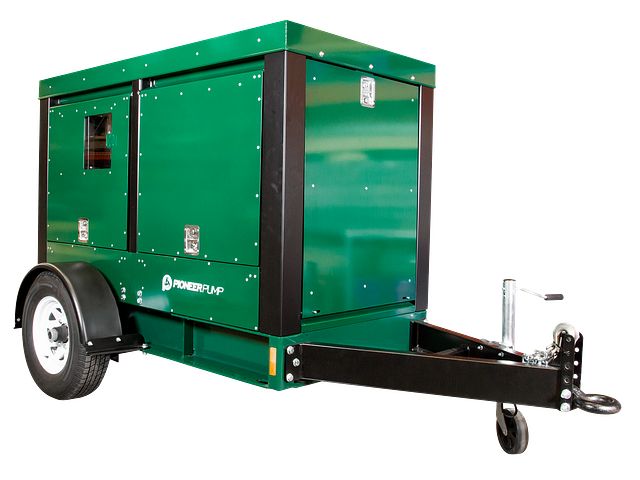

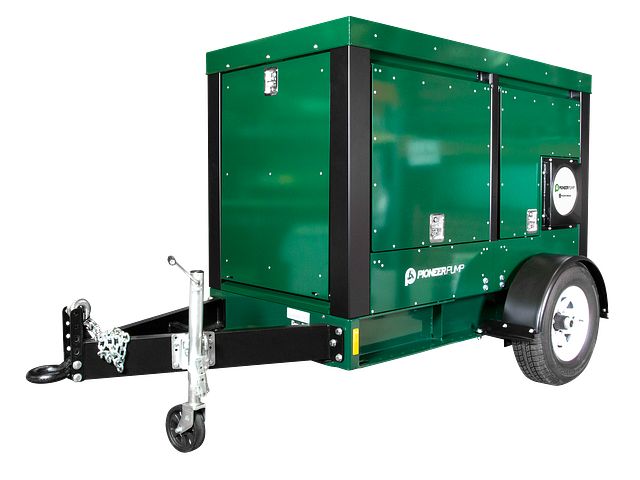

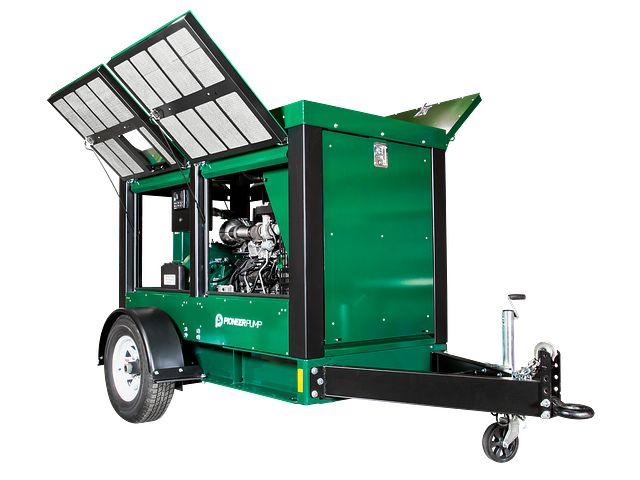

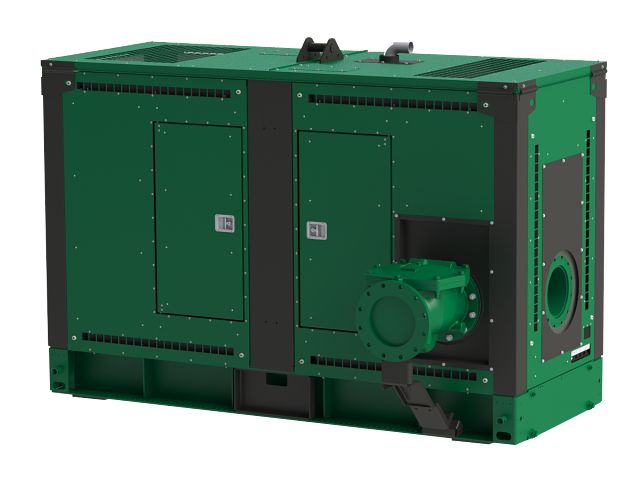

Enclosed Diesel Pump Packages
Pionner Pump offers a comprehensive range of sound attenuated diesel-driven pump packages for fixed and portable installations. These packages are fully enclosured to be compliant with municipal noise and safetly regulations, so these packages are built for remote mines or bustling metropolitans. Available with vacuum-assisted priming, self-priming and standard centrifugal pump ends and in sizes up to 8 inches for standard part numbers, Pioneer centrifugal pumps are designed to provide better flow, higher head and greater efficiency to meet your unique challenges.
Brand
Overview
Order Information
Support Materials
Overview
Features & Benefits
- Modular enclosure with sound-reduction materials
- Lockable enclosure doors and pad-lockable interface window
- Indefinite run-dry capability
- Extreme flow technology
- Environmentally safe priming system: Pioneer Prime
- Auto-start controls
Order Information
Enclosed Diesel Pump Packages
| Item | Suction | Discharge | Impeller Dia. | Engine Model | Fuel Tank | Rated HP |
|---|---|---|---|---|---|---|
| 44S10-PPI-02-D | 4" | 4" | 10" / 254 mm | D2.9L4 | 75 gal / 283.91 L | 36 HP |
| 44S10-PPI-02-P | 4" | 4" | 10" / 254 mm | 404F-E22T | 75 gal / 283.91 L | 38 HP |
| 66S12-PPI-02-D | 6" | 6" | 11" / 279 mm | TD2.9L4 | 75 gal / 283.91 L | 59 HP |
| 66S12-PPI-02-P | 6" | 6" | 11" / 279 mm | 404J-E22TA | 75 gal / 283.91 L | 54 HP |
| 88S12-PPI-02-D | 8" | 8" | 12.25" / 331 mm | TCD3.6L4 | 135 gal / 511.03 L | 111 HP |
