D14003 - DPO104H60575-001

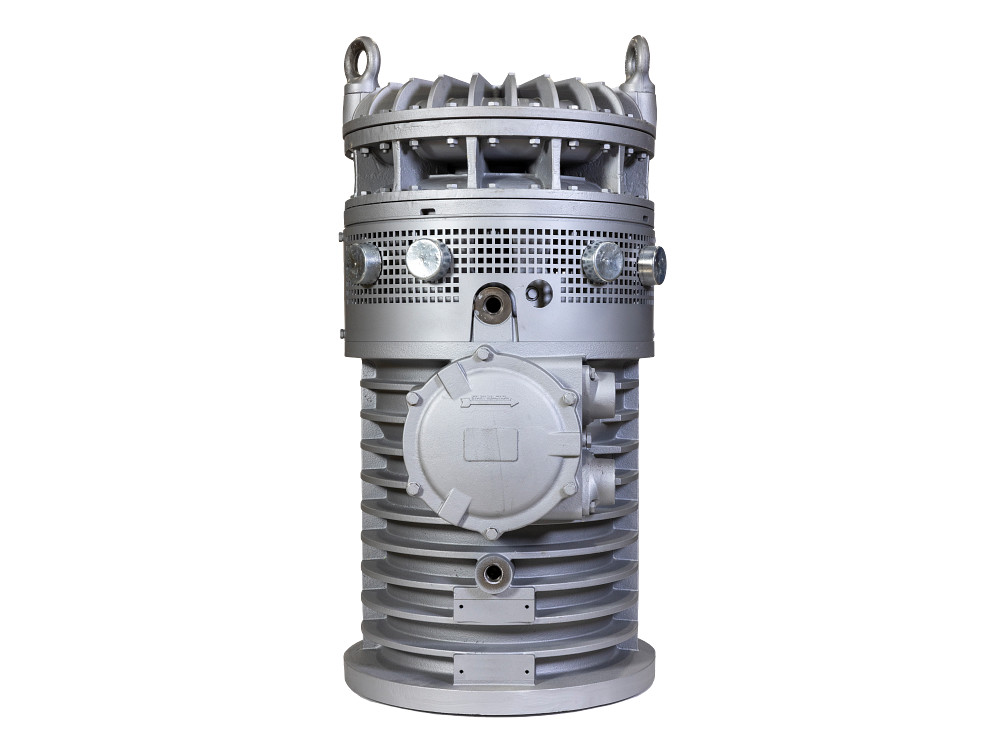

Sample image - may not be representative of product features
D14003 - DPO104H60575-001
Item
D14003
Model:
DPO104H60575-001
PRINT THIS PAGE
Ratings
| HP | 140 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Amps – Full Load | 116 A |
| Voltage | 575 VAC |
| Cable Length | 0 ft / 0 m |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Protection [IP] | IP68 |
| Motor Insulation Classification | H |
| Poles | 2 |
| Max. Flow Rate – 60 Hz | 920 gpm / 208.95 m³/h |
| Max. Head – 60 Hz | 785 ft / 239.27 m |
| Min. Head – 60 Hz | 260 ft / 79.25 m |
| Shut Off Height – 60 Hz | 785 ft / 239.27 m |
| Stages | 2 |
| Max. Solid Handling Size | 0.39 ” / 1 cm |
| Motor Cooling | Fully Submerged |
| Max. Operating Temperature | 104 °F / 40 °C |
| Winding Resistance (Main Winding) | 0.2 |
| Maximum Starts in a 1 Hour Period | 15 |
| Max. Immersion Depth | 246.06 ft / 75 m |
Materials of Construction
| Pump Body Material | Cast Iron |
| Impeller Type | Enclosed |
| Impeller Material | Stainless Steel |
| Intake Screen Material | Stainless Steel AISI 316 |
| Fasteners Material | Stainless Steel |
| Seal Material | Tungsten Carbide / Tungsten Carbide / FKM |
| Seal Type | Mechanical Seal |
| Diffuser Material | Cast Iron – Polyurethane |
| O-ring Material | NBR |
| Pump Shaft Material | Stainless Steel |
| Stator/ Motor Shell Material | Cast Iron GG-20 |
Dimensions
| Discharge Type | Flange |
| Discharge | 4 “ |
| Impeller Dia. | 9.98 ” / 254 mm |
| Suction Type | Screened |
| Product Length | 27.1 ” / 68.83 cm |
| Product Width | 24 ” / 60.96 cm |
| Product Height | 49.4 ” / 125.48 cm |
| Product Weight (Dry) | 2284 lb / 1036 kg |
| Product Weight with Pack | 2324 lb / 1054.15 kg |
| Carton Length | 49.29 ” / 125.2 cm |
| Carton Width | 35.71 ” / 90.7 cm |
| Carton Height | 35.71 ” / 90.7 cm |
Other
| Electrical Agency Approvals | cCSAus |
| Warranty Standard Time | 18 Months |
| Spec Sheet | |
| Owner’s Manual | |
| Parts Breakdown | |
| Repair Kit Available | Yes |
