D06003 - DPO043H60575-001

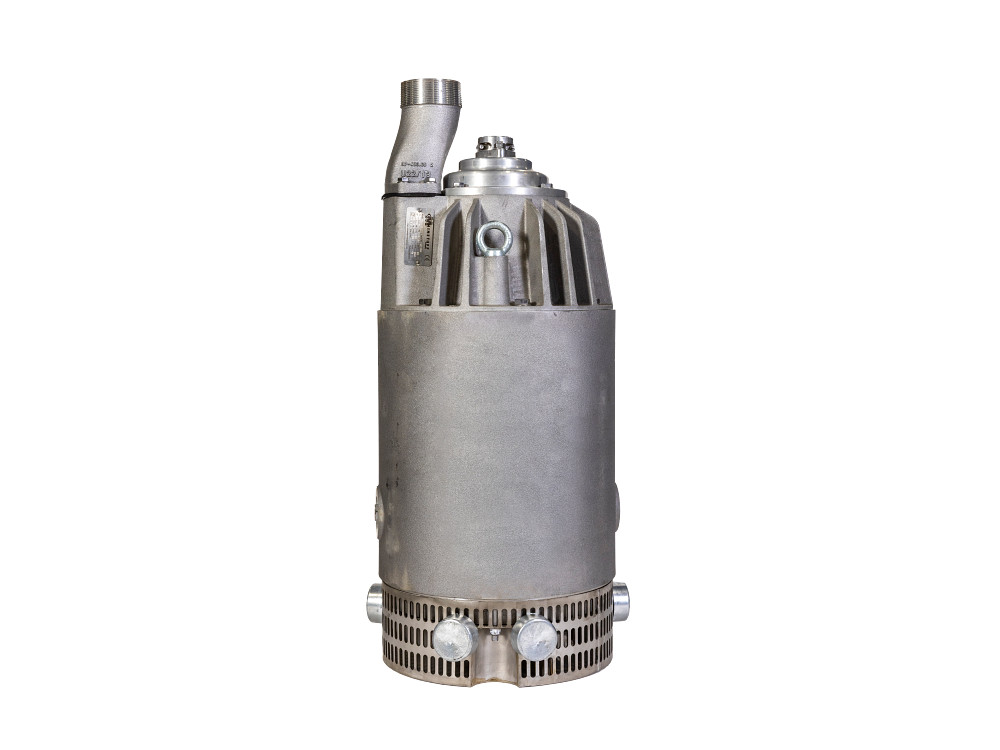

Sample image - may not be representative of product features
D06003 - DPO043H60575-001
Item
D06003
Model:
DPO043H60575-001
PRINT THIS PAGE
Ratings
| HP | 58 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Amps – Full Load | 50 A |
| Voltage | 575 VAC |
| Cable Length | 0 ft / 0 m |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Protection [IP] | IP68 |
| Motor Insulation Classification | H |
| Poles | 2 |
| Max. Flow Rate – 60 Hz | 1000 gpm / 227.12 m³/h |
| Max. Head – 60 Hz | 345 ft / 105.16 m |
| Min. Head – 60 Hz | 60 ft / 18.29 m |
| Shut Off Height – 60 Hz | 345 ft / 105.16 m |
| Stages | 1 |
| Max. Solid Handling Size | 0.24 ” / 0.6 cm |
| Motor Cooling | Fully Submerged |
| Max. Operating Temperature | 104 °F / 40 °C |
| Winding Resistance (Main Winding) | 0.4 |
| Maximum Starts in a 1 Hour Period | 15 |
| Max. Immersion Depth | 65.62 ft / 20 m |
Materials of Construction
| Pump Body Material | Aluminum |
| Impeller Type | Semi-open |
| Impeller Material | Stainless Steel |
| Intake Screen Material | Stainless Steel AISI 316 |
| Fasteners Material | Stainless Steel |
| Seal Material | Silicon Carbide / Tungsten Carbide / 316 SS / FKM |
| Seal Type | Mechanical Seal |
| Diffuser Material | Aluminum – Polyurethane |
| O-ring Material | NBR + HNBR |
| Pump Shaft Material | Stainless Steel |
| Stator/ Motor Shell Material | Aluminium |
Dimensions
| Discharge Type | Threaded – MNPT |
| Discharge | 4 “ |
| Impeller Dia. | 9.43 ” / 240 mm |
| Suction Type | Screened |
| Product Length | 17.7 ” / 44.96 cm |
| Product Width | 17.7 ” / 44.96 cm |
| Product Height | 41.5 ” / 105.41 cm |
| Product Weight (Dry) | 570 lb / 258.55 kg |
| Product Weight with Pack | 1344.82 lb / 610 kg |
| Carton Length | 43.31 ” / 110 cm |
| Carton Width | 23.43 ” / 59.5 cm |
| Carton Height | 23.43 ” / 59.5 cm |
Other
| Electrical Agency Approvals | cCSAus |
| Warranty Standard Time | 18 Months |
| Spec Sheet | |
| Owner’s Manual | |
| Parts Breakdown | |
| Repair Kit Available | Yes |
