D01304 - DPO010V60575-001
Minetuff Series 13HP High Head Pump, 575V, 3PH, 4" Discharge. Pump comes standard with TC-SiC mechanical seals, zinc anodes and Class H insulation.

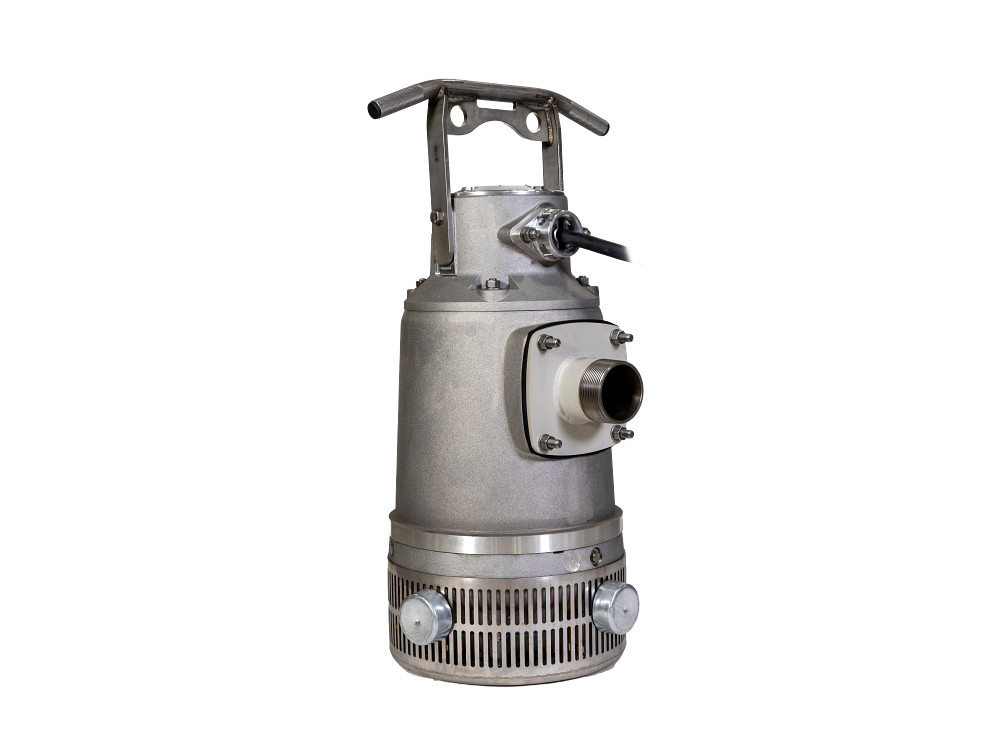

Sample image - may not be representative of product features
D01304 - DPO010V60575-001
Minetuff Series 13HP High Head Pump, 575V, 3PH, 4" Discharge. Pump comes standard with TC-SiC mechanical seals, zinc anodes and Class H insulation.
Item
D01304
Model:
DPO010V60575-001
PRINT THIS PAGE
Ratings
| HP | 13 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Amps – Full Load | 13 A |
| Voltage | 575 VAC |
| Cable Length | 0 ft / 0 m |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Protection [IP] | IP68 |
| Motor Insulation Classification | H |
| Poles | 2 |
| Max. Flow Rate – 60 Hz | 805 gpm / 182.84 m³/h |
| Max. Head – 60 Hz | 105 ft / 32 m |
| Min. Head – 60 Hz | 23 ft / 7.01 m |
| Shut Off Height – 60 Hz | 105 ft / 32 m |
| Stages | 1 |
| Max. Solid Handling Size | 0.24 ” / 0.6 cm |
| Motor Cooling | Fully Submerged |
| Max. Operating Temperature | 104 °F / 40 °C |
| Winding Resistance (Main Winding) | 1.6 |
| Maximum Starts in a 1 Hour Period | 15 |
| Max. Immersion Depth | 65.62 ft / 20 m |
Materials of Construction
| Pump Body Material | Aluminum |
| Impeller Type | Semi-open |
| Impeller Material | Stainless Steel |
| Intake Screen Material | Stainless Steel AISI 316 |
| Fasteners Material | Stainless Steel |
| Seal Material | Silicon Carbide / Tungsten Carbide / 316 SS / FKM |
| Seal Type | Mechanical Seal |
| Diffuser Material | Aluminum – Polyurethane |
| O-ring Material | NBR + HNBR |
| Pump Shaft Material | Stainless Steel |
| Stator/ Motor Shell Material | Aluminium |
Dimensions
| Discharge Type | Threaded – MNPT |
| Discharge | 4 “ |
| Impeller Dia. | 5.81 ” / 148 mm |
| Suction Type | Screened |
| Product Length | 17 ” / 43.18 cm |
| Product Width | 17 ” / 43.18 cm |
| Product Height | 34 ” / 86.36 cm |
| Product Weight (Dry) | 230 lb / 104.33 kg |
| Product Weight with Pack | 252 lb / 114.31 kg |
| Carton Length | 20.47 ” / 52 cm |
| Carton Width | 27.36 ” / 69.5 cm |
| Carton Height | 40.55 ” / 103 cm |
Other
| Electrical Agency Approvals | cCSAus |
| Warranty Standard Time | 18 Months |
| Spec Sheet | |
| Owner’s Manual | |
| Parts Breakdown | |
| Repair Kit Available | Yes |
