D00802 - DPC006V60460-002
Minetuff Series 8HP High Volume Pump, 460V, 3PH, 3" Discharge, 50ft power cable. Pump comes standard with TC-SiC mechanical seals, zinc anodes and Class H insulation.

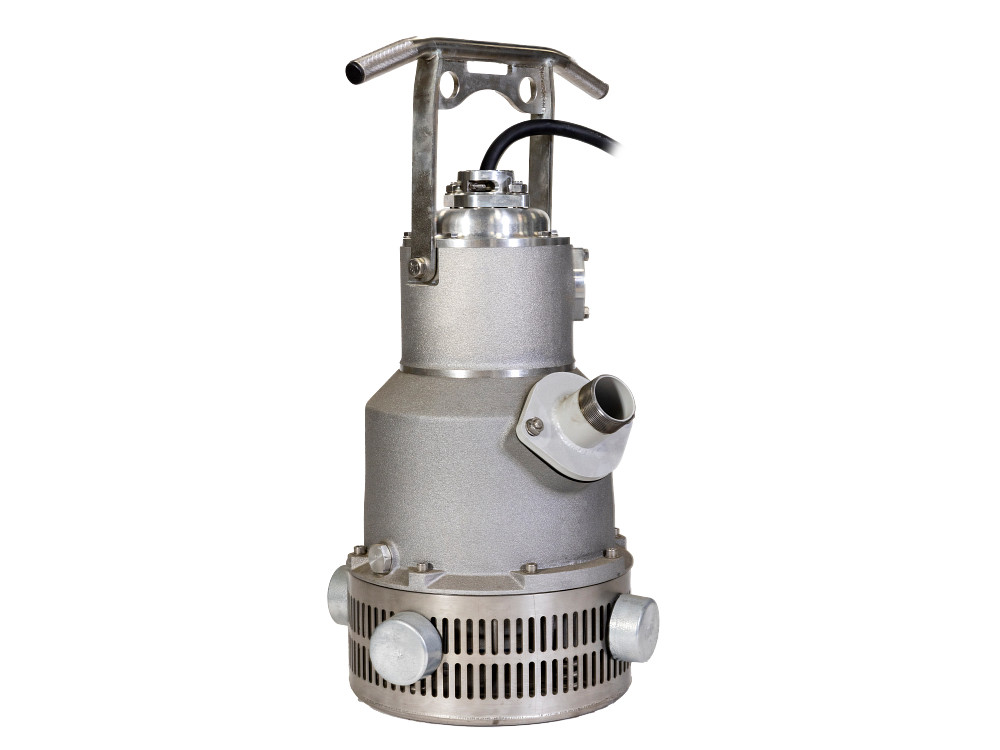

Sample image - may not be representative of product features
D00802 - DPC006V60460-002
Minetuff Series 8HP High Volume Pump, 460V, 3PH, 3" Discharge, 50ft power cable. Pump comes standard with TC-SiC mechanical seals, zinc anodes and Class H insulation.
Item
D00802
Model:
DPC006V60460-002
PRINT THIS PAGE
Ratings
| HP | 8 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Amps – Full Load | 10 A |
| Voltage | 460 VAC |
| Pump Power Cord Type | SOOW |
| Pump Power Cord Gauge | 12-5 |
| Cable Length | 50 ft / 15.24 m |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Protection [IP] | IP68 |
| Lead Wire Size | AWG #12 |
| Motor Insulation Classification | H |
| Poles | 2 |
| Max. Flow Rate – 60 Hz | 520 gpm / 118.1 m³/h |
| Max. Head – 60 Hz | 75 ft / 22.86 m |
| Min. Head – 60 Hz | 20 ft / 6.1 m |
| Shut Off Height – 60 Hz | 75 ft / 22.86 m |
| Stages | 1 |
| Max. Solid Handling Size | 0.24 ” / 0.6 cm |
| Motor Cooling | Fully Submerged |
| Max. Operating Temperature | 104 °F / 40 °C |
| Winding Resistance (Main Winding) | 2.42 |
| Maximum Starts in a 1 Hour Period | 15 |
| Max. Immersion Depth | 65.62 ft / 20 m |
Materials of Construction
| Pump Body Material | Aluminum |
| Impeller Type | Semi-open |
| Impeller Material | Stainless Steel |
| Intake Screen Material | Stainless Steel AISI 316 |
| Fasteners Material | Stainless Steel |
| Seal Material | Silicon Carbide / Tungsten Carbide / 316 SS / FKM |
| Seal Type | Mechanical Seal |
| Diffuser Material | Aluminum – Polyurethane |
| O-ring Material | NBR + HNBR |
| Pump Shaft Material | Stainless Steel |
| Stator/ Motor Shell Material | Aluminium |
Dimensions
| Discharge Type | Threaded – MNPT |
| Discharge | 3 “ |
| Impeller Dia. | 4.68 ” / 119 mm |
| Suction Type | Screened |
| Product Length | 16.5 ” / 41.91 cm |
| Product Width | 15.7 ” / 39.88 cm |
| Product Height | 29.8 ” / 75.69 cm |
| Product Weight (Dry) | 160 lb / 72.57 kg |
| Product Weight with Pack | 181 lb / 82.1 kg |
| Carton Length | 20.47 ” / 52 cm |
| Carton Width | 27.36 ” / 69.5 cm |
| Carton Height | 36.5 ” / 92.7 cm |
Other
| Electrical Agency Approvals | cCSAus |
| Warranty Standard Time | 18 Months |
| Spec Sheet | |
| Owner’s Manual | |
| Parts Breakdown | |
| Repair Kit Available | Yes |
