86S20HC202000T - SC86S20L2-HO
Solids Handling Pump with 8 inch suction and 6 inch discharge ANSI Flange connections. 20 inch impeller with 3 inch solid handling capability. CD4 Stainless Steel construction, Bareshaft configuration. No Priming System.

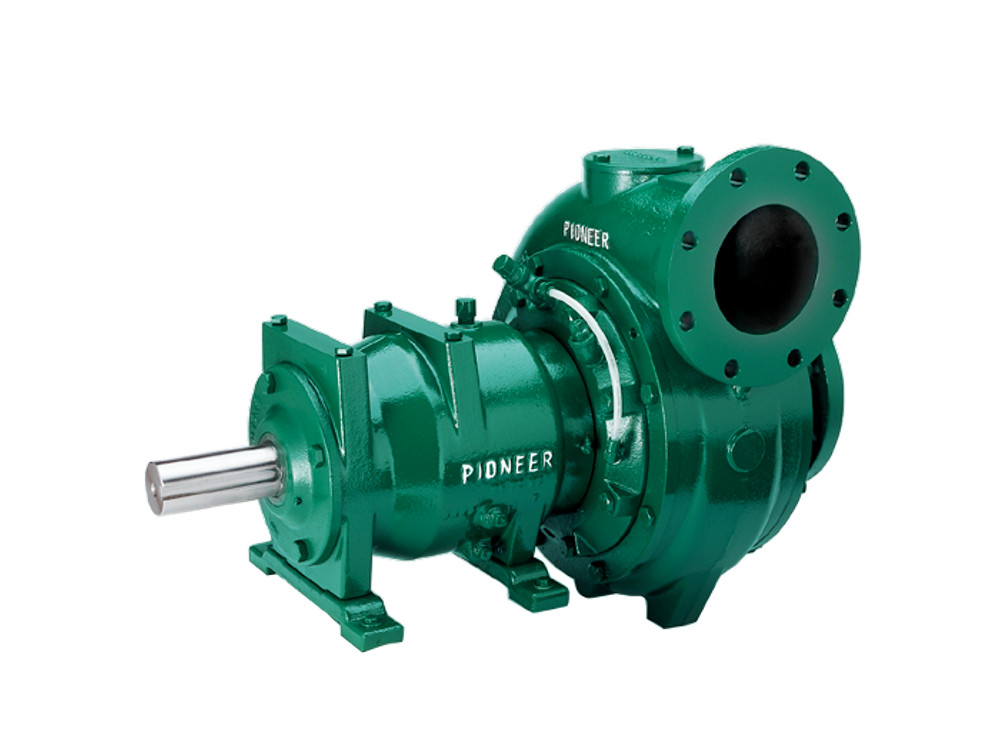

Sample image - may not be representative of product features
86S20HC202000T - SC86S20L2-HO
Solids Handling Pump with 8 inch suction and 6 inch discharge ANSI Flange connections. 20 inch impeller with 3 inch solid handling capability. CD4 Stainless Steel construction, Bareshaft configuration. No Priming System.
Item
86S20HC202000T
Model:
SC86S20L2-HO
PRINT THIS PAGE
Ratings
| BEP Head – 1,800 rpm | 383 ft / 116.74 m |
| Max. Flow Rate – 60 Hz | 4875 gpm / 1107.23 m³/h |
| BEP Flow Rate – 1,800 rpm | 2805 gpm / 637.08 m³/h |
| Max. Head – 60 Hz | 625 ft / 190.5 m |
| Max. Solid Handling Size | 3 ” / 7.62 cm |
| Best Efficiency Point – 60 Hz | 72 % |
| Maximum Operating Speed | 2000 rpm |
Liquid
| Max. Fluid Temperature | 350 °F / 176.67 °C |
| Volute Material | CD4MCu Stainless Steel |
| Impeller Type | Enclosed |
| Impeller Material | CD4MCu Stainless Steel |
| Bearing Frame Lubrication Type | Oil |
| Seal Material | Silicon Carbide / Tungsten Carbide / FKM / SS |
| Seal Type | Mechanical Seal |
| O-ring Material | Viton |
| Pump Shaft Material | 17-4 PH Stainless Steel |
| Wear Ring Material | Stainless Steel 316 |
| Priming Type | None |
Dimensions
| Discharge Type | Flat Face Flange – ANSI 150 |
| Discharge | 6 “ |
| Impeller Dia. | 20 ” / 508 mm |
| Suction | 8 “ |
| Suction Type | Flat Faced Flange – ANSI 150 |
| Product Weight (Dry) | 1190 lb / 539.77 kg |
| SAE Size | None |
Other
| Warranty Standard Time | 24 Months |
| Spec Sheet | |
| Owner’s Manual | |
| Parts Breakdown |
