64S17HT201700T - PP64S17L2-HO
Solids Handling Pump with 6 inch suction and 4 inch discharge ANSI Flange connections. 17 inch impeller with 3 inch solid handling capability. CD4 Stainless Steel construction, Bareshaft configuration. Vacuum-Assisted Priming.

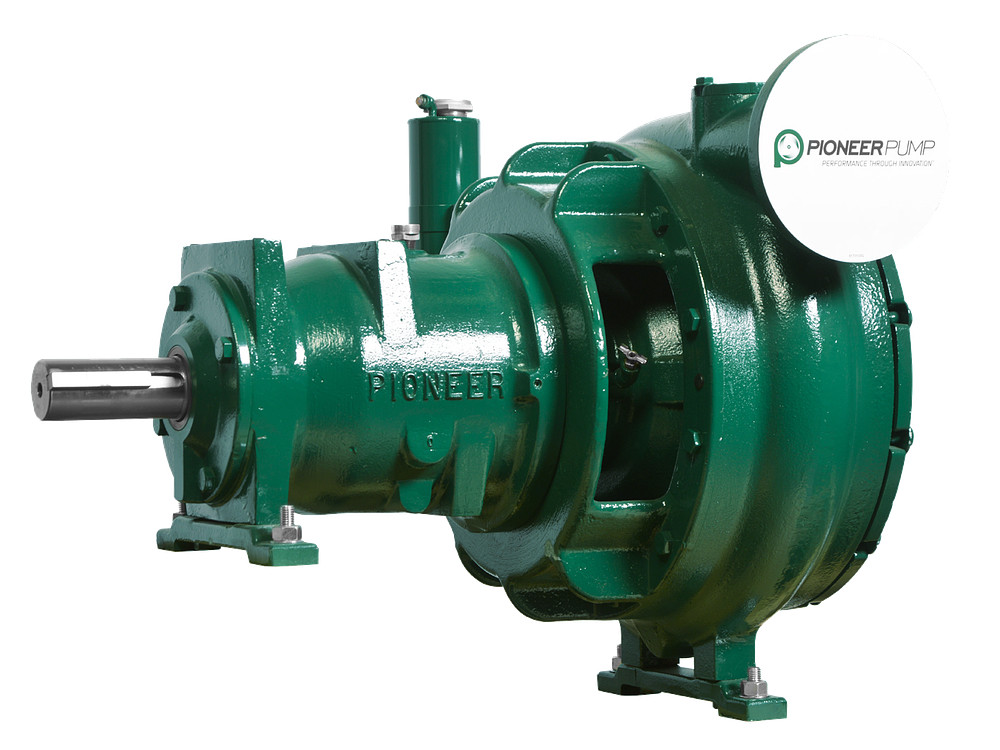

Sample image - may not be representative of product features
64S17HT201700T - PP64S17L2-HO
Solids Handling Pump with 6 inch suction and 4 inch discharge ANSI Flange connections. 17 inch impeller with 3 inch solid handling capability. CD4 Stainless Steel construction, Bareshaft configuration. Vacuum-Assisted Priming.
Item
64S17HT201700T
Model:
PP64S17L2-HO
PRINT THIS PAGE
Ratings
| BEP Head – 1,800 rpm | 282 ft / 85.95 m |
| Max. Flow Rate – 60 Hz | 3000 gpm / 681.37 m³/h |
| BEP Flow Rate – 1,800 rpm | 1220 gpm / 277.09 m³/h |
| Max. Head – 60 Hz | 490 ft / 149.35 m |
| Max. Solid Handling Size | 3 ” / 7.62 cm |
| Best Efficiency Point – 60 Hz | 63 % |
| Maximum Operating Speed | 2100 rpm |
Liquid
| Max. Fluid Temperature | 200 °F / 93.33 °C |
Materials of Construction
| Volute Material | CD4MCu Stainless Steel |
| Impeller Type | Enclosed |
| Impeller Material | CD4MCu Stainless Steel |
| Bearing Frame Lubrication Type | Oil |
| Seal Material | Silicon Carbide / Tungsten Carbide / FKM / SS |
| Seal Type | Mechanical Seal |
| O-ring Material | Viton |
| Pump Shaft Material | 17-4 PH Stainless Steel |
| Wear Ring Material | Stainless Steel 316 |
| Priming Type | Pioneer Prime |
Dimensions
| Discharge Type | Flat Face Flange – ANSI 150 |
| Discharge | 4 “ |
| Impeller Dia. | 17 ” / 432 mm |
| Suction | 6 “ |
| Suction Type | Flat Faced Flange – ANSI 150 |
| Product Weight (Dry) | 1265 lb / 573.79 kg |
| SAE Size | None |
Other
| Warranty Standard Time | 24 Months |
| Spec Sheet | |
| Owner’s Manual | |
| Parts Breakdown |
