64S17-PPI-01-J - PP64S17L71-6068-GL3XL

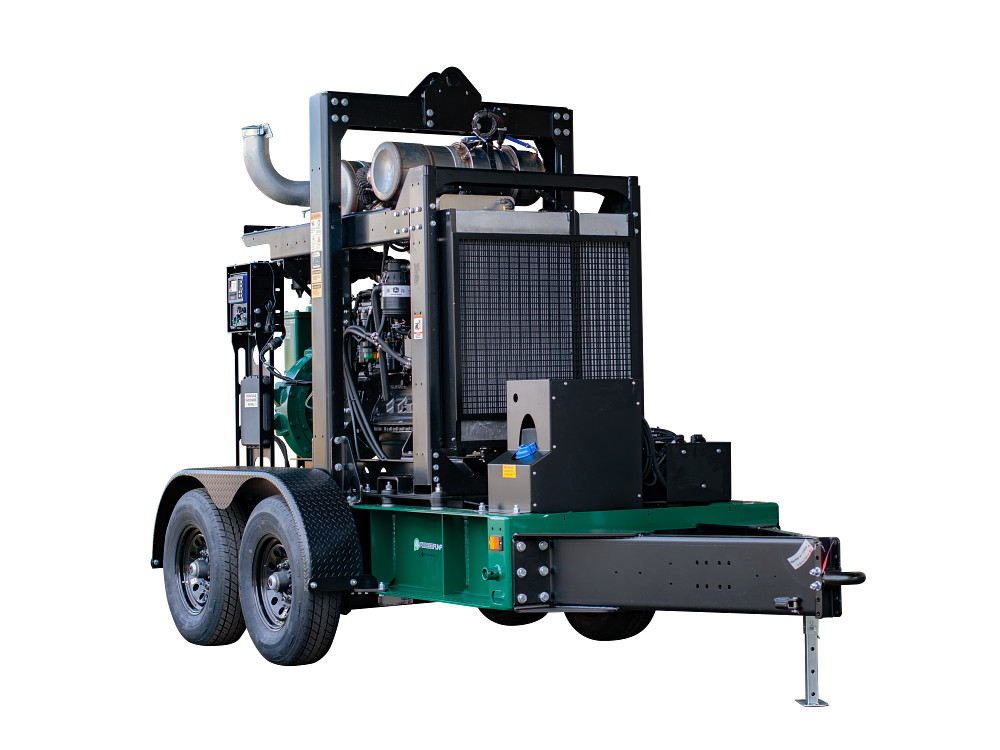

Sample image - may not be representative of product features
64S17-PPI-01-J - PP64S17L71-6068-GL3XL
Item
64S17-PPI-01-J
Model:
PP64S17L71-6068-GL3XL
PRINT THIS PAGE
Ratings
| Rated HP | 248 HP |
| Control Box Type | LOFA CP750E |
| BEP Head – 1,800 rpm | 301 ft / 91.74 m |
| Max. HP | 275 hp |
| Max. Flow Rate – 60 Hz | 2820 gpm / 169200 gph / 4060799.98 gpd / 640492 Lph / 10674.86 Lpm / 640.49 m³/h |
| BEP Flow Rate – 1,800 rpm | 1330 gpm / 79800 gph / 1915199.99 gpd / 302076 Lph / 5034.6 Lpm / 302.08 m³/h |
| Max. Head – 60 Hz | 470 ft / 143.26 m |
| Max. Solid Handling Size | 3 ” / 7.62 cm |
| Fuel Tank | 210 gal / 794.94 L |
| Fuel Consumption | 0.2 gpm / 12 gph / 281.28 gpd / 44 Lph / 0.74 Lpm / 0.04 m³/h |
| Best Efficiency Point – 60 Hz | 63 % |
| Maximum Operating Speed | 2100 rpm |
Liquid
| Max. Fluid Temperature | 200 °F / 93.33 °C |
Materials of Construction
| Volute Material | Ductile Iron |
| Impeller Type | Enclosed |
| Impeller Material | CA6NM Stainless Steel |
| Bearing Frame Lubrication Type | Oil |
| Seal Material | Silicon Carbide / Tungsten Carbide / FKM / SS |
| Seal Type | Mechanical Seal |
| Coupling Material | Vulcanized Rubber |
| O-ring Material | Viton |
| Pump Shaft Material | 17-4 PH Stainless Steel |
| Wear Ring Material | ASTM A48 Class 40 Gray Iron |
| Priming Type | Pioneer Prime |
| Engine Brand | John Deere |
| Engine Model | 6068CI550 |
Dimensions
| Discharge Type | Flat Face Flange – ANSI 150 |
| Discharge | 4 “ |
| Impeller Dia. | 17 ” / 432 mm |
| Suction | 6 “ |
| Suction Type | Flat Faced Flange – ANSI 150 |
| Product Weight (Dry) | 8520 lb / 3864.61 kg |
| Product Weight (Wet) | 10011 lb / 4540.91 kg |
Other
| Warranty Standard Time | 24 Months |
| Spec Sheet | |
| Owner’s Manual | |
| Parts Breakdown |
