64C21-PPI-01-J - PP64C21L71-6068CI550-GL3XL

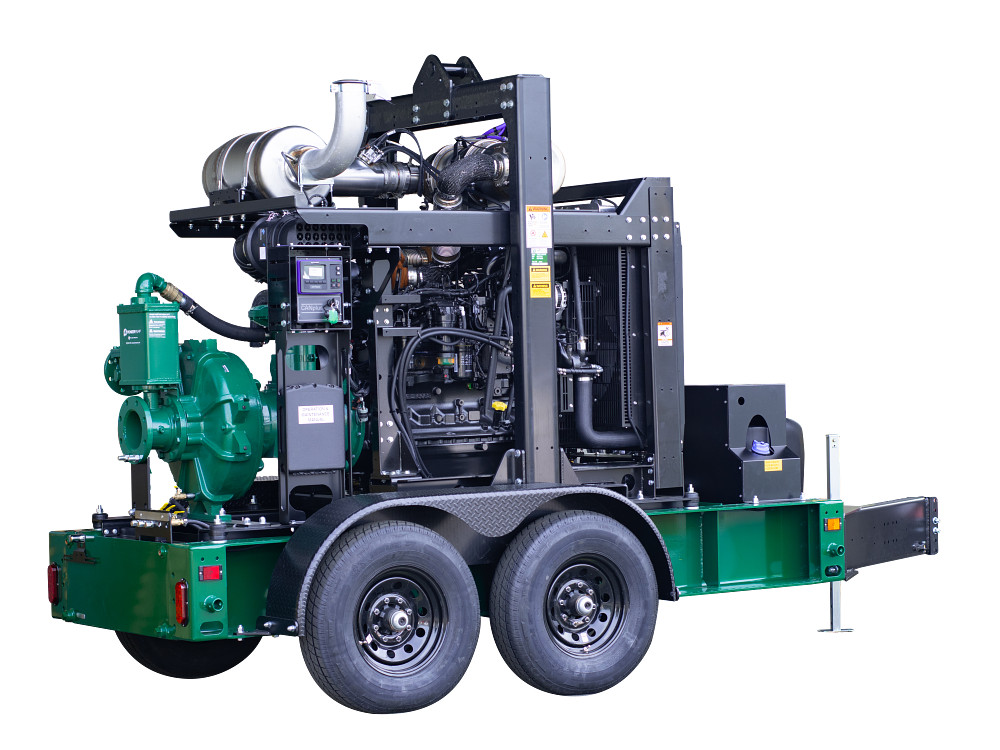

Sample image - may not be representative of product features
64C21-PPI-01-J - PP64C21L71-6068CI550-GL3XL
Item
64C21-PPI-01-J
Model:
PP64C21L71-6068CI550-GL3XL
PRINT THIS PAGE
Ratings
| Rated HP | 248 HP |
| Control Box Type | LOFA CP750E |
| BEP Head – 1,800 rpm | 476 ft / 145.08 m |
| Max. HP | 275 hp |
| Max. Flow Rate – 60 Hz | 1440 gpm / 86400 gph / 2073599.99 gpd / 327060 Lph / 5450.99 Lpm / 327.06 m³/h |
| BEP Flow Rate – 1,800 rpm | 1020 gpm / 61200 gph / 1468799.99 gpd / 231667 Lph / 3861.12 Lpm / 231.67 m³/h |
| Max. Head – 60 Hz | 595 ft / 181.36 m |
| Max. Solid Handling Size | 0.88 ” / 2.24 cm |
| Fuel Tank | 210 gal / 794.94 L |
| Fuel Consumption | 0.2 gpm / 12 gph / 281.28 gpd / 44 Lph / 0.74 Lpm / 0.04 m³/h |
| Best Efficiency Point – 60 Hz | 61 % |
| Maximum Operating Speed | 2200 rpm |
Liquid
| Max. Fluid Temperature | 200 °F / 93.33 °C |
Materials of Construction
| Volute Material | Ductile Iron |
| Impeller Type | Enclosed |
| Impeller Material | CA6NM Stainless Steel |
| Bearing Frame Lubrication Type | Oil |
| Seal Material | Silicon Carbide / Tungsten Carbide / FKM / SS |
| Seal Type | Mechanical Seal |
| Coupling Material | Vulcanized Rubber |
| O-ring Material | Viton |
| Pump Shaft Material | 17-4 PH Stainless Steel |
| Wear Ring Material | ASTM A48 Class 40 Gray Iron |
| Priming Type | Pioneer Prime |
| Engine Brand | John Deere |
| Engine Model | 6068CI550 |
Dimensions
| Discharge Type | Flat Face Flange – ANSI 150 |
| Discharge | 4 “ |
| Impeller Dia. | 21 ” / 533 mm |
| Suction | 6 “ |
| Suction Type | Flat Faced Flange – ANSI 150 |
| Product Weight (Dry) | 8520 lb / 3864.61 kg |
| Product Weight (Wet) | 9763 lb / 4428.42 kg |
Other
| Warranty Standard Time | 24 Months |
| Spec Sheet | |
| Owner’s Manual | |
| Parts Breakdown |
