44S8-PPI-01-D - PP44S8L71-D2.2

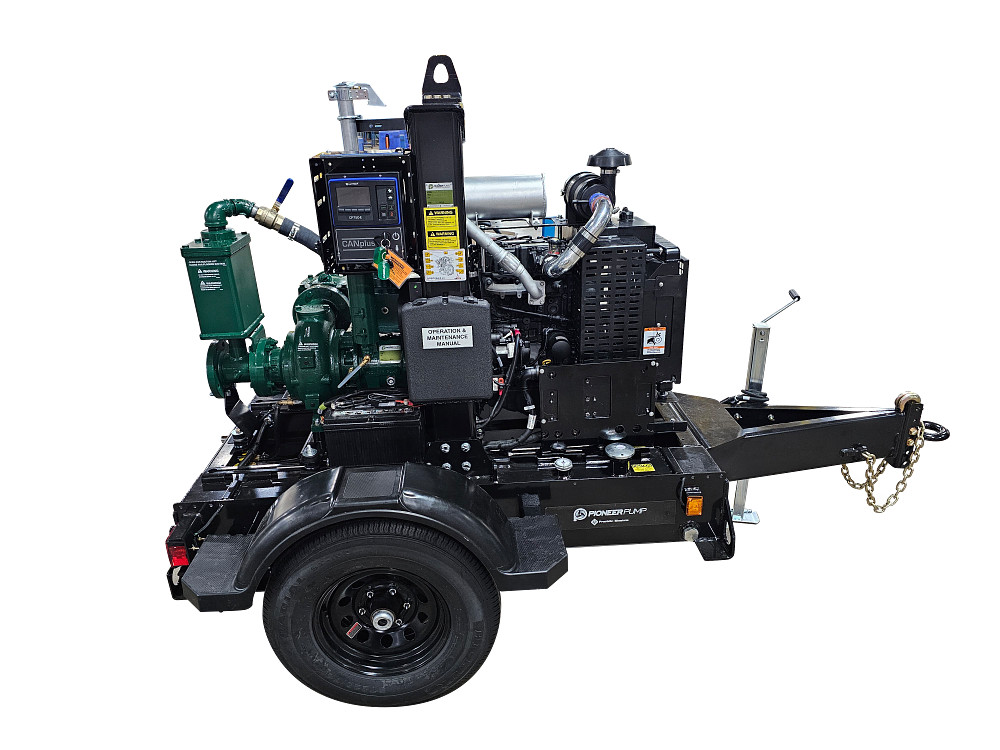

Sample image - may not be representative of product features
44S8-PPI-01-D - PP44S8L71-D2.2
Item
44S8-PPI-01-D
Model:
PP44S8L71-D2.2
PRINT THIS PAGE
Ratings
| Rated HP | 24 HP |
| Control Box Type | LOFA CP750E |
| BEP Head – 1,800 rpm | 70 ft / 21.34 m |
| Max. HP | 24 hp |
| Max. Flow Rate – 60 Hz | 1525 gpm / 91500 gph / 2195999.99 gpd / 346365 Lph / 5772.75 Lpm / 346.37 m³/h |
| Max. Head – 60 Hz | 85 ft / 25.91 m |
| Max. Solid Handling Size | 3 ” / 7.62 cm |
| Fuel Tank | 59 gal / 223.34 L |
| Fuel Consumption | 0.02 gpm / 1 gph / 33.6 gpd / 5 Lph / 0.09 Lpm / 0.01 m³/h |
| Best Efficiency Point – 60 Hz | 56 % |
| Maximum Operating Speed | 2100 rpm |
Liquid
| Max. Fluid Temperature | 200 °F / 93.33 °C |
Materials of Construction
| Volute Material | Ductile Iron |
| Impeller Type | Closed |
| Impeller Material | CA6NM Stainless Steel |
| Bearing Frame Lubrication Type | Oil |
| Seal Material | Silicon Carbide / Tungsten Carbide / FKM / SS |
| Seal Type | Mechanical Seal |
| Coupling Material | Vulcanized Rubber |
| O-ring Material | Viton |
| Pump Shaft Material | 17-4 PH Stainless Steel |
| Wear Ring Material | ASTM A48 Class 40 Gray Iron |
| Priming Type | Pioneer Prime |
| Engine Brand | Deutz |
| Engine Model | D2.2L3 |
Dimensions
| Discharge Type | Flange – ANSI 150 |
| Discharge | 4 “ |
| Impeller Dia. | 8.25 ” / 210 mm |
| Suction | 4 “ |
| Suction Type | Flange – ANSI 150 |
| Product Weight (Dry) | 2820 lb / 1279.13 kg |
| Product Weight (Wet) | 3240 lb / 1469.64 kg |
Other
| Warranty Standard Time | 24 Months |
| Spec Sheet | |
| Owner’s Manual | |
| Parts Breakdown |
