43C21-PPI-01-J - PP43C21L71-4045-UP3B

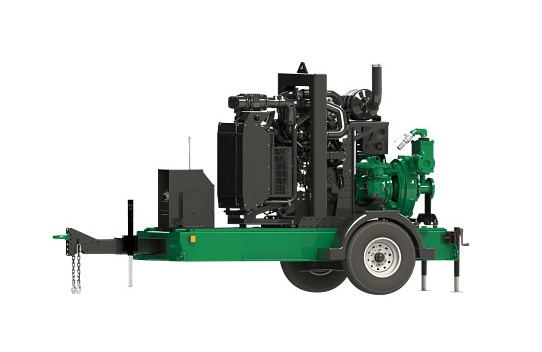

Sample image - may not be representative of product features
43C21-PPI-01-J - PP43C21L71-4045-UP3B
Item
43C21-PPI-01-J
Model:
PP43C21L71-4045-UP3B
PRINT THIS PAGE
Ratings
| Rated HP | 142 HP |
| Control Box Type | LOFA CP750E |
| BEP Head – 1,800 rpm | 469 ft / 142.95 m |
| Max. HP | 173 hp |
| Max. Flow Rate – 60 Hz | 600 gpm / 36000 gph / 864000 gpd / 136275 Lph / 2271.25 Lpm / 136.27 m³/h |
| BEP Flow Rate – 1,800 rpm | 470 gpm / 28200 gph / 676800 gpd / 106749 Lph / 1779.14 Lpm / 106.75 m³/h |
| Max. Head – 60 Hz | 575 ft / 175.26 m |
| Max. Solid Handling Size | 0.78 ” / 1.98 cm |
| Fuel Tank | 135 gal / 511.03 L |
| Fuel Consumption | 0.12 gpm / 7 gph / 168.72 gpd / 27 Lph / 0.44 Lpm / 0.03 m³/h |
| Best Efficiency Point – 60 Hz | 46 % |
| Maximum Operating Speed | 2000 rpm |
Liquid
| Max. Fluid Temperature | 200 °F / 93.33 °C |
Materials of Construction
| Volute Material | Ductile Iron |
| Impeller Type | Enclosed |
| Impeller Material | CA6NM Stainless Steel |
| Bearing Frame Lubrication Type | Oil |
| Seal Material | Silicon Carbide / Tungsten Carbide / FKM / SS |
| Seal Type | Mechanical Seal |
| Coupling Material | Vulcanized Rubber |
| O-ring Material | Viton |
| Pump Shaft Material | 17-4 PH Stainless Steel |
| Wear Ring Material | ASTM A48 Class 40 Gray Iron |
| Priming Type | Pioneer Prime |
| Engine Brand | John Deere |
| Engine Model | 4045HFC06 |
Dimensions
| Discharge Type | Flat Face Flange – ANSI 150 |
| Discharge | 3 “ |
| Impeller Dia. | 21 ” / 533 mm |
| Suction | 4 “ |
| Suction Type | Flat Faced Flange – ANSI 150 |
| Product Weight (Dry) | 5780 lb / 2621.76 kg |
| Product Weight (Wet) | 6737 lb / 3055.85 kg |
Other
| Warranty Standard Time | 24 Months |
| Spec Sheet | |
| Owner’s Manual | |
| Parts Breakdown |
