1212S17-PPI-01-J - PP1212S17L71-6090CI550

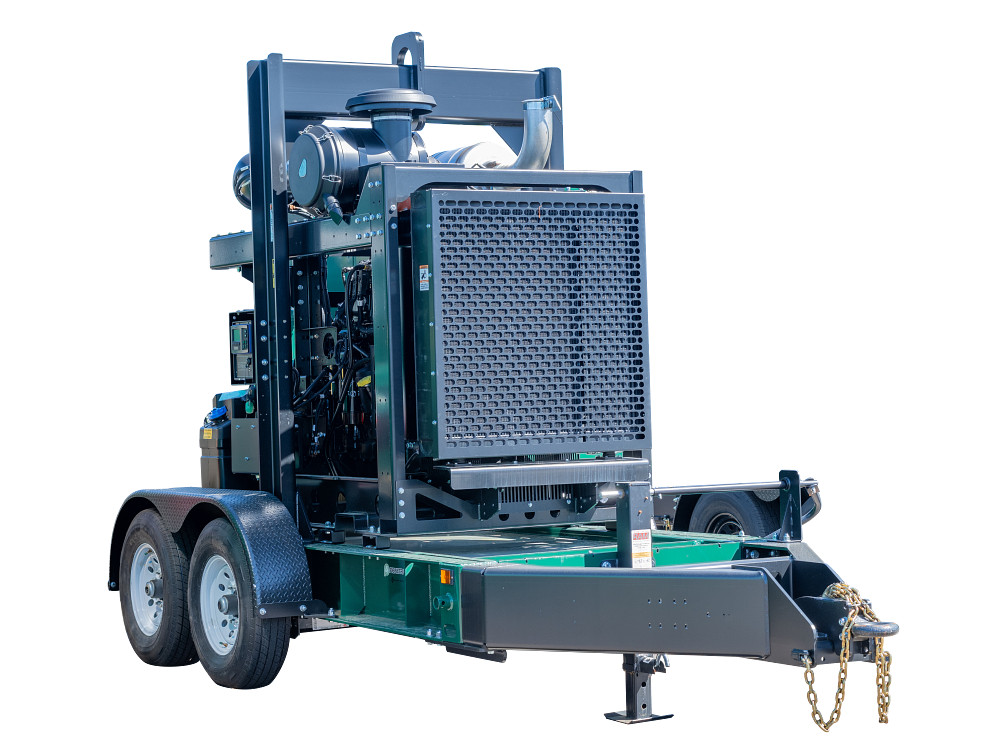

Sample image - may not be representative of product features
1212S17-PPI-01-J - PP1212S17L71-6090CI550
Item
1212S17-PPI-01-J
Model:
PP1212S17L71-6090CI550
PRINT THIS PAGE
Ratings
| Rated HP | 341 HP |
| Control Box Type | LOFA CP750E |
| BEP Head – 1,800 rpm | 126 ft / 38.4 m |
| Max. HP | 350 hp |
| Max. Flow Rate – 60 Hz | 10420 gpm / 625200 gph / 15004799.94 gpd / 2366639 Lph / 39443.99 Lpm / 2366.64 m³/h |
| BEP Flow Rate – 1,800 rpm | 7870 gpm / 472200 gph / 11332799.95 gpd / 1787471 Lph / 29791.19 Lpm / 1787.47 m³/h |
| Max. Head – 60 Hz | 190 ft / 57.91 m |
| Max. Solid Handling Size | 3.75 ” / 9.53 cm |
| Fuel Tank | 250 gal / 946.35 L |
| Fuel Consumption | 0.27 gpm / 16 gph / 383.28 gpd / 60 Lph / 1.01 Lpm / 0.06 m³/h |
| Best Efficiency Point – 60 Hz | 80 % |
| Maximum Operating Speed | 1800 rpm |
Liquid
| Max. Fluid Temperature | 200 °F / 93.33 °C |
Materials of Construction
| Volute Material | Ductile Iron |
| Impeller Type | Enclosed |
| Impeller Material | CA6NM Stainless Steel |
| Bearing Frame Lubrication Type | Oil |
| Seal Material | Silicon Carbide / Tungsten Carbide / FKM / SS |
| Seal Type | Mechanical Seal |
| Coupling Material | Vulcanized Rubber |
| O-ring Material | Viton |
| Pump Shaft Material | 17-4 PH Stainless Steel |
| Wear Ring Material | ASTM A48 Class 40 Gray Iron |
| Priming Type | Pioneer Prime |
| Engine Brand | John Deere |
| Engine Model | 6090CI550 |
Dimensions
| Discharge Type | Flat Face Flange – ANSI 150 |
| Discharge | 12 “ |
| Impeller Dia. | 17.25 ” / 438 mm |
| Suction | 12 “ |
| Suction Type | Flat Faced Flange – ANSI 150 |
| Product Weight (Dry) | 11920 lb / 5406.82 kg |
| Product Weight (Wet) | 13695 lb / 6211.95 kg |
Other
| Warranty Standard Time | 24 Months |
| Spec Sheet | |
| Owner’s Manual | |
| Parts Breakdown |
